Cad Cam Dental Zirconia Milling Machine 5 Axis For Lab

Brand Name : FLYIN

Model Number : 5Axis dental milling machine

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : USD 10000-15000 /pcs

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/month

Delivery Time : 5 work days

Material : metal, Steel

Product name : 5axis dental milling machine

Name : Zirconia dental lab equipment

Application : millingzirconia discs,pmma,wax,peek

Power Requirements : 220V, 50/60 Hz

Color : Black

Powder : 1.5kw

Style : laboratorio dental

Quality : high quality

Configuration : Dry type + dust collection

Tool Changer : Automatic 10-station tool changer

Rotation Angle : A 360° B:+35°,-91°

Warranty : 1 year

Tool Magazine Capacity : 10

Gross Weight : 150Kgs

Size : 535*655*720mm

Contact Now

5 Axis Cad Cam Dental Milling Machine Zirconia Special Milling Machine Fresadora Equipment for Lab

Product Description:

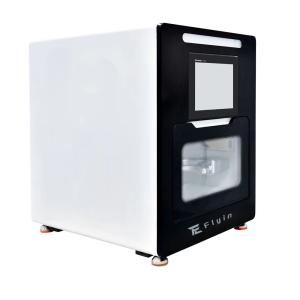

The FLYIN MILL 500 5 axis dry dental milling machine is the best milling machine for dental laboratories and clinics.

It has the following characteristics:

  1. small occupation space, large operating space,
  2. simple operation,
  3. automaticly change burs,
  4. high precision,
  5. fast milling speed,
  6. wifi connection &control,
  7. 90°milling strategy,
  8. Led light bar indicator,
  9. resume when interrupted,
  10. ultra-silent processing.

Powerful spindle

With power 0.8kw spindle, Servo Motor,you can mill any dental material such as Zirconia,PMMA, PEEK, WAX and more.

Material saving

90 degree anterior teeth milling strategy makes the zirconia materials usage increasing up to 20%, with its C clamp structure.

Cad Cam Dental Zirconia Milling Machine 5 Axis For Lab

Advantage:

*90° Vertical Milling
The 90°Vertical Milling is good for milling of the anterior and allows for a fine texturing of the denture, providing the customer with a more perfect result.

*Large B-axis rotation
B-axis rotation angles up to +35°, -91°, so large angle implants can be processed

* 20% increased in material utilisation
The C-Clamp Adapter allowing the use of material edges and a 20% increase in material utilisation.

*Resume when interrupted
In case of an unexpected situation, processing can be automatically resumed from the last interrupted step, avoiding duplication of work and improving processing efficiency
Cad Cam Dental Zirconia Milling Machine 5 Axis For LabCad Cam Dental Zirconia Milling Machine 5 Axis For Lab

Specifications:

Name:dental cad cam milling machine

Axis 5 Axis
Cut Method dry milling
Milling Materials zirconia block, pmma, pmma, wax
Size of milling materials φ98, thickness(10-30mm)
Range of rotation & tling rotation x/y/z: 105 / 135/ 90 A:360° B:120°
Speed of Principal axis 0-60000rpm / 500w
Driver Full rotation servo motor drive

cutters 10 tools; φ4mm
Compressed Air: 4.5-7.5bar;50ml/min
Min Capacity-Dry: 3000L/min
Power requirment : 800W;220-230v AC,56/60 hz

Cad Cam Dental Zirconia Milling Machine 5 Axis For Lab

Machinable denture type:

It can work on crown, bridge,coping,veneer, inlay, onlay, large-angle implants, abutment and other dental restoration case.

Cad Cam Dental Zirconia Milling Machine 5 Axis For Lab

Pre-sale and after-sale service:

*Quality control department

Testing of all products before shipping

*Strict and complete production system
Efficient delivery, all orders delivered within a week
* After-sales guarantee
One year free replacement of spare parts, lifetime after-sales service
*Perfect after-sales system
After-sales service personnel, including mechanical engineers, software engineers, dental technicians, are available for you 24 hours a day, 7 days a week.

Company

Flyin is a high-tech dental materials and CAD CAM equipment company that produces dental zirconia blocks, glass ceramics, scanners, 3D printers, milling machines,porcelain furnacers and sintering furnaces, and other consumables.

We have a modern science and technology park covering an area of nearly 10,000 square meters, equipped with advanced research and development laboratories and production workshops, and adopts fully intelligent CNC machines for production management to meet the high standard of product quality.

We have sold our products to nearly 150 countries around the world and equipped with a professional after-sales service department to provide one-to-one 24/7 after-sales service to our customers.

Our whole series of products have passed many domestic and international honors and authoritative qualification certifications, such as ISO, CE certification, South Korea KGMP certification, Innovative Enterprises, Integrity Demonstration Enterprises, High-tech enterprises, and so on. Our products are exported to more than 150 countries and regions around the world.

And we are looking for strong agents around theworld.

Cad Cam Dental Zirconia Milling Machine 5 Axis For LabCad Cam Dental Zirconia Milling Machine 5 Axis For LabCad Cam Dental Zirconia Milling Machine 5 Axis For Lab

WHY CHOOSE Flyin?

1. Our products are of high quality and good prices. All the machines have 12 months' warranty.

2. Multiple kinds of machines and accessories, there must be one that can meet your needs.

3. Professional team from machine design, production to sale. Sales team 24 hrs online.
4. Accept customize machines according to your requests.
Cad Cam Dental Zirconia Milling Machine 5 Axis For LabCad Cam Dental Zirconia Milling Machine 5 Axis For Lab
